From time to time a label or icon wishes one further line of context, however you don’t need to crowd the web page. Tooltips are ideal for shape hints, function explanations, and refined onboarding.
On this put up, we’ll display you methods to create responsive hover/faucet tooltips in Divi 5 with Interactions. Let’s get to it!
What Are Tooltips (And Why Use Them)?
Tooltips are small messages that seem while you hover over or click on a webpage. Transfer your cursor over a button; a small field would possibly say what it does. Click on an icon, and chances are you’ll see a snappy word.
Web sites use tooltips to save lots of house. As an alternative of filling the web page with explanations, they simply expose main points when wanted. Some websites additionally use them to spotlight new options chances are you’ll disregard. The most productive ones stay the textual content transient, generally underneath 180 characters.
When designed smartly, tooltips lend a hand with out moving into the best way. They solution fast questions so other folks can simply stay shifting thru a web page.
Tooltips And Extra, Made Simple With Divi 5’s Interactions
Divi 5 contains a brand spanking new function known as Interactions that basically adjustments how internet sites reply to guests. Interactions permit you to create dynamic behaviors the place components to your web page react to consumer movements, all with out writing any code.

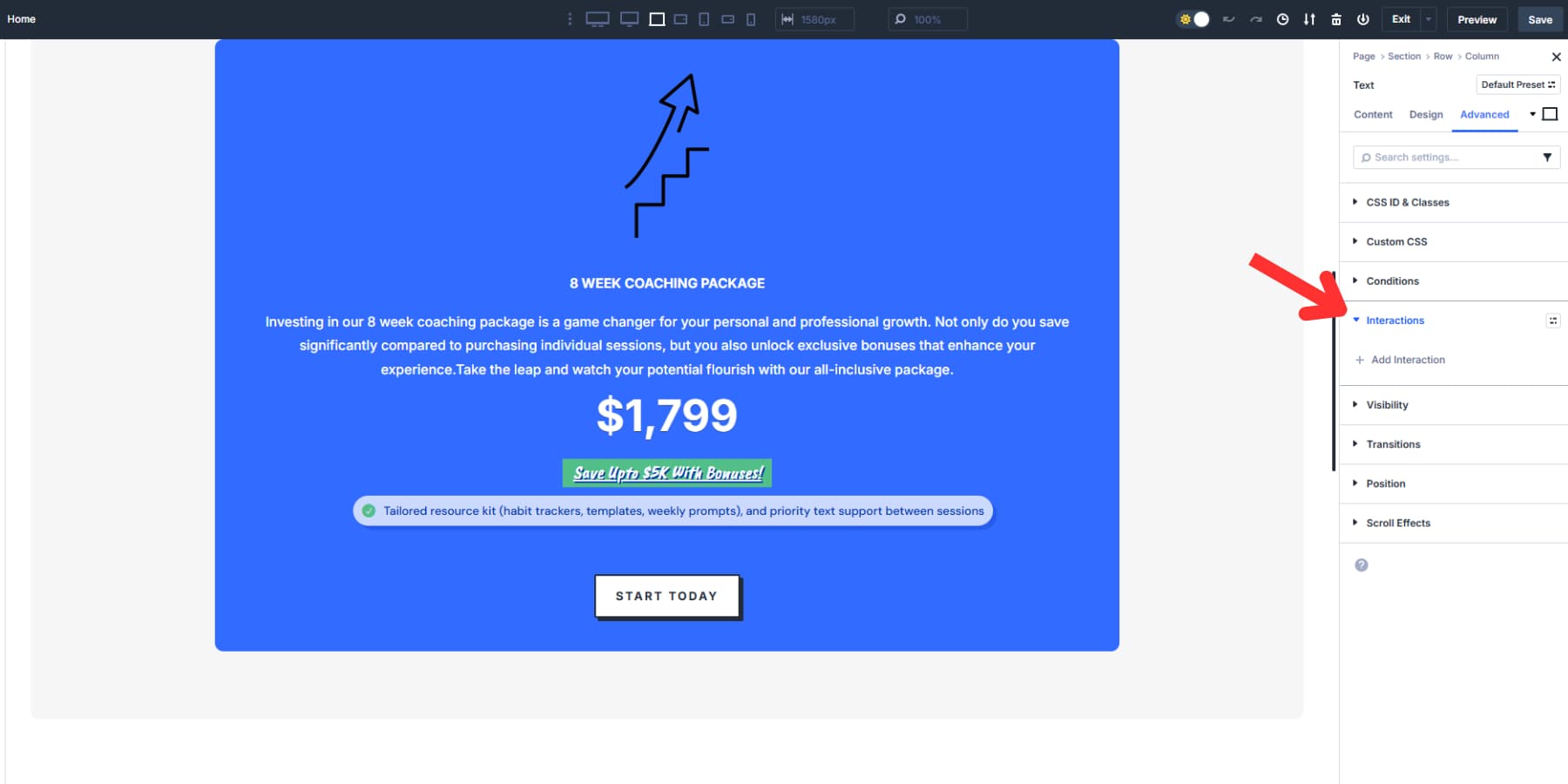

The brand new Interactions choices are available in the course of the Complex tab of any module, row, column, or phase in Divi’s visible builder.
The device has 3 portions: triggers, results, and goals. Triggers are consumer movements like clicking, soaring, or scrolling. Results are what occur subsequent, like appearing hidden content material, converting colours, or shifting components. Goals are the portions of your web page that get affected.
Tooltips are only one use case. The similar gear can toggle FAQ sections, animate hero content material on scroll, and construct pop-ups with out the desire for customized code.
The interactions mechanically paintings throughout desktop, pill, and cellular gadgets.
Development Your Tooltip In Divi 5
Now that you know what Interactions can do, it’s time to construct your first tooltip. The method is simple and occurs fully inside Divi’s visible builder. You’ll paintings with the similar interface you realize, simply with some new choices that regulate how components reply to consumer movements.
1. Developing Your Tooltip Content material First
Sooner than you place up any interactions, construct the real tooltip content material to your web page. Get started through including a Textual content Module for your phase and typing your tooltip message. You’ll be able to additionally use an Icon Record Module for tooltips. Stay the textual content and icons brief and useful; round 20 to 30 phrases works best possible for many circumstances.

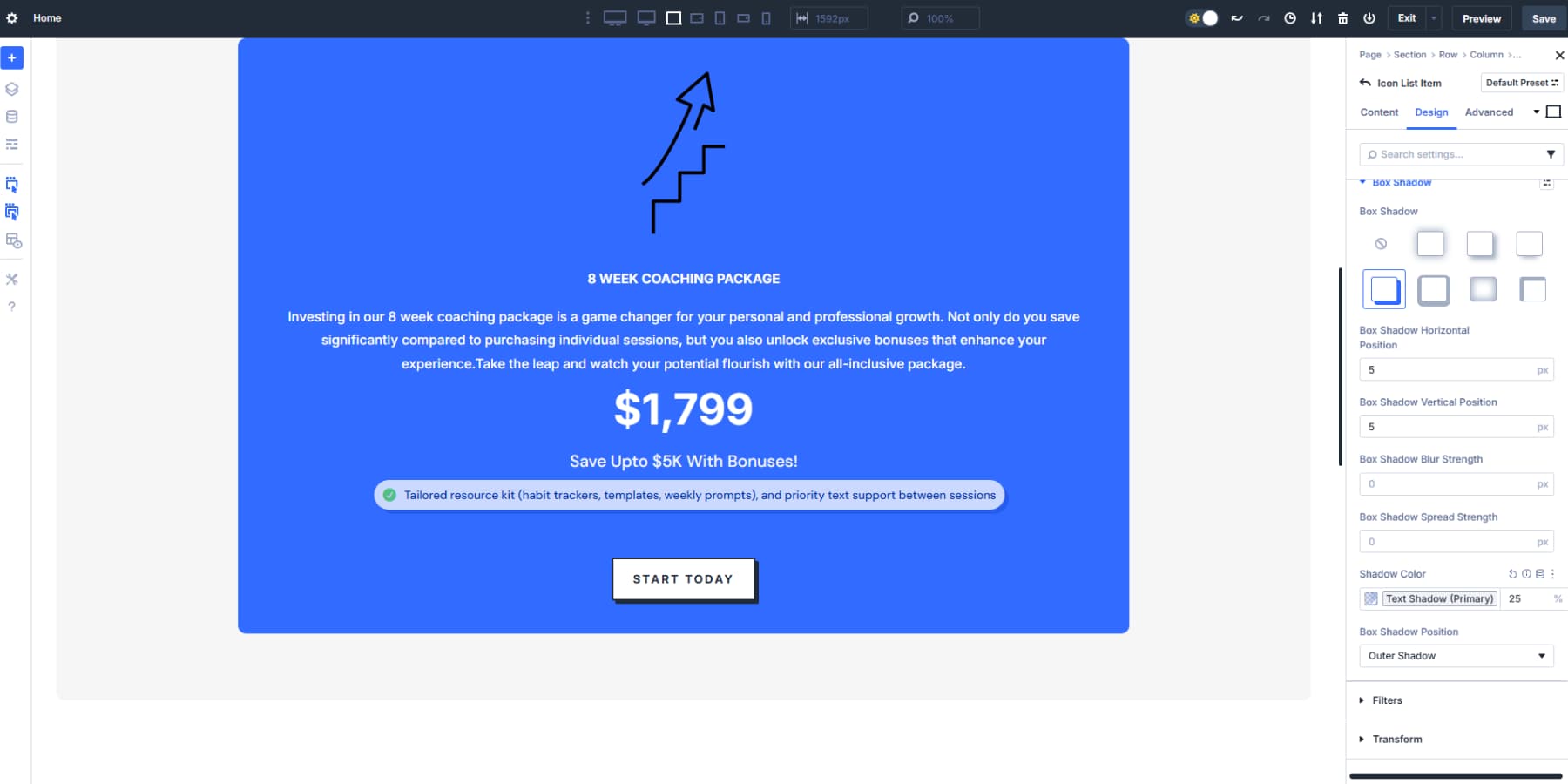

Taste your tooltip to seem the phase. Give it a background shade that stands proud out of your web page however remains readable. Upload 5 to ten pixels of padding so the textual content has respiring room. Set a border radius of 8 to twelve pixels for that vintage tooltip bubble glance. You’ll be able to upload a refined field shadow to raise it off the web page.
For textual content styling, use a font measurement fairly smaller than your frame textual content, round 14 or 15 pixels. Be sure that the textual content shade contrasts well together with your background selection. White or darkish textual content on each darkish and lightweight backgrounds works smartly. You’ll be able to additionally use Design Variables for colours and spacing to tie tooltips into your web page’s broader styling device.

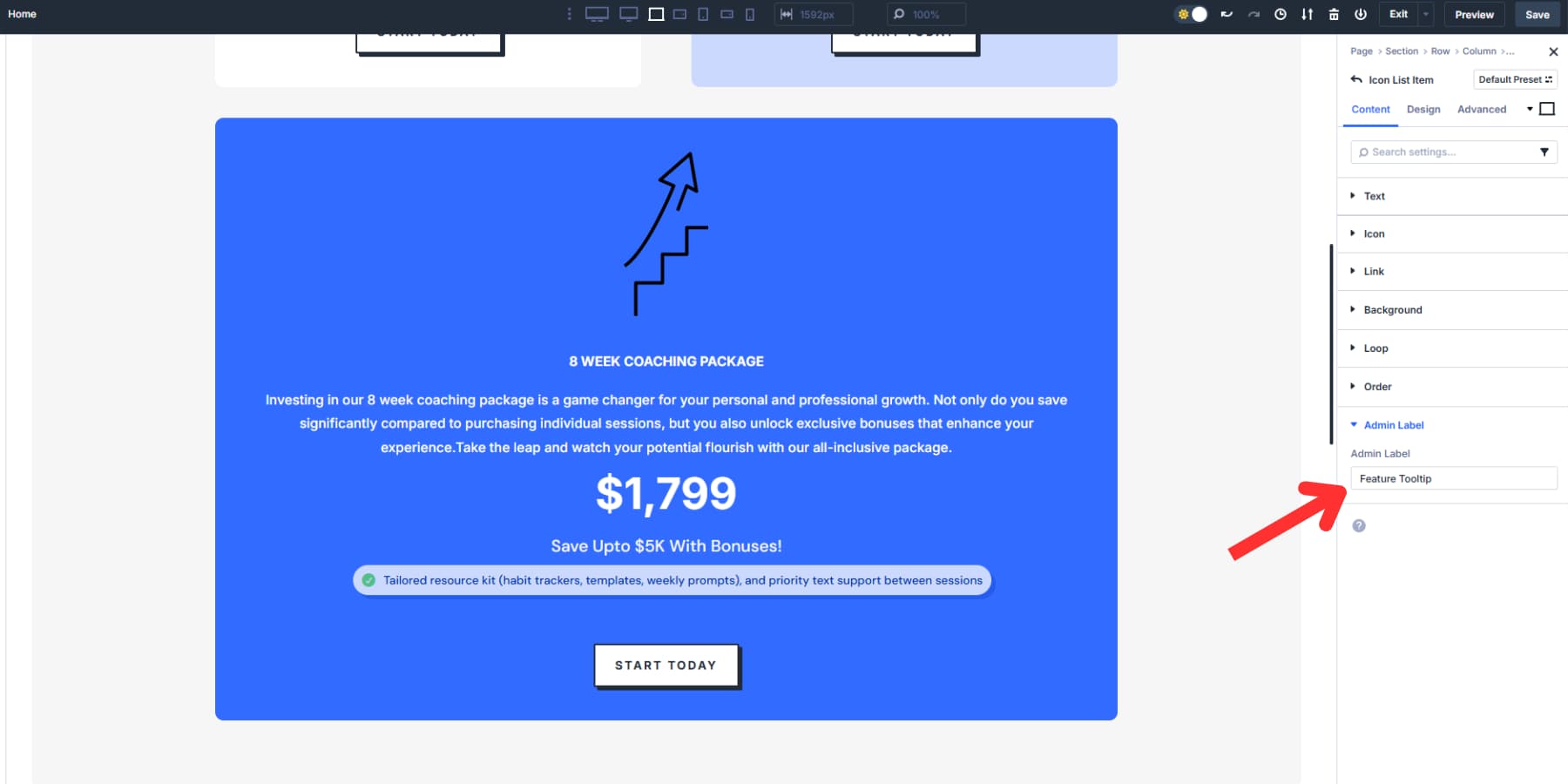

Identify it the usage of the Admin Label box, like “Function Tooltip” for simple identity all the way through setup.

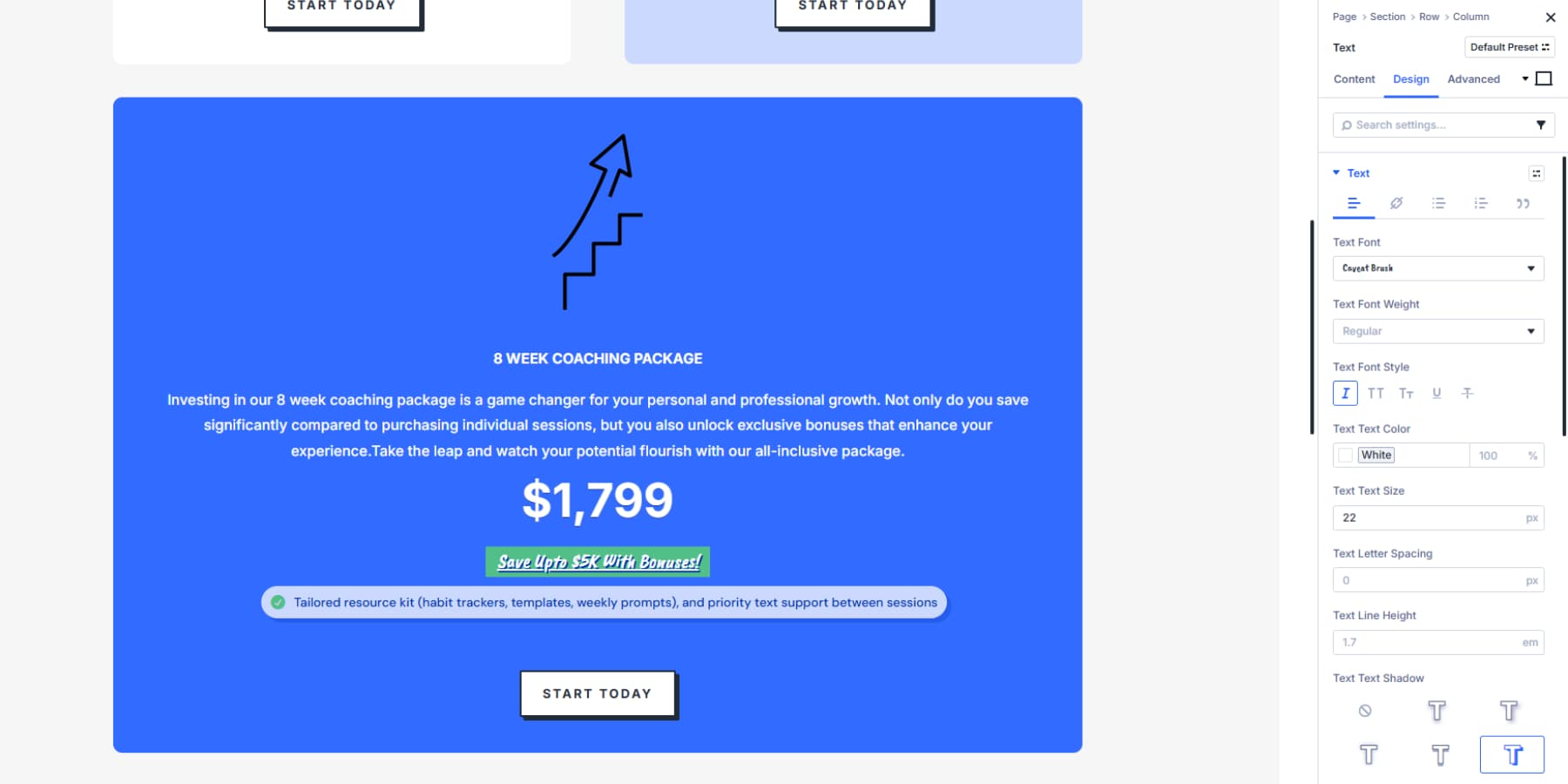

Imagine including visible cues to the “father or mother” module the place the tooltip would possibly seem. As an example, take a look at an underline for textual content components or a refined background shade. Those hints inform guests that further knowledge is looking ahead to them.

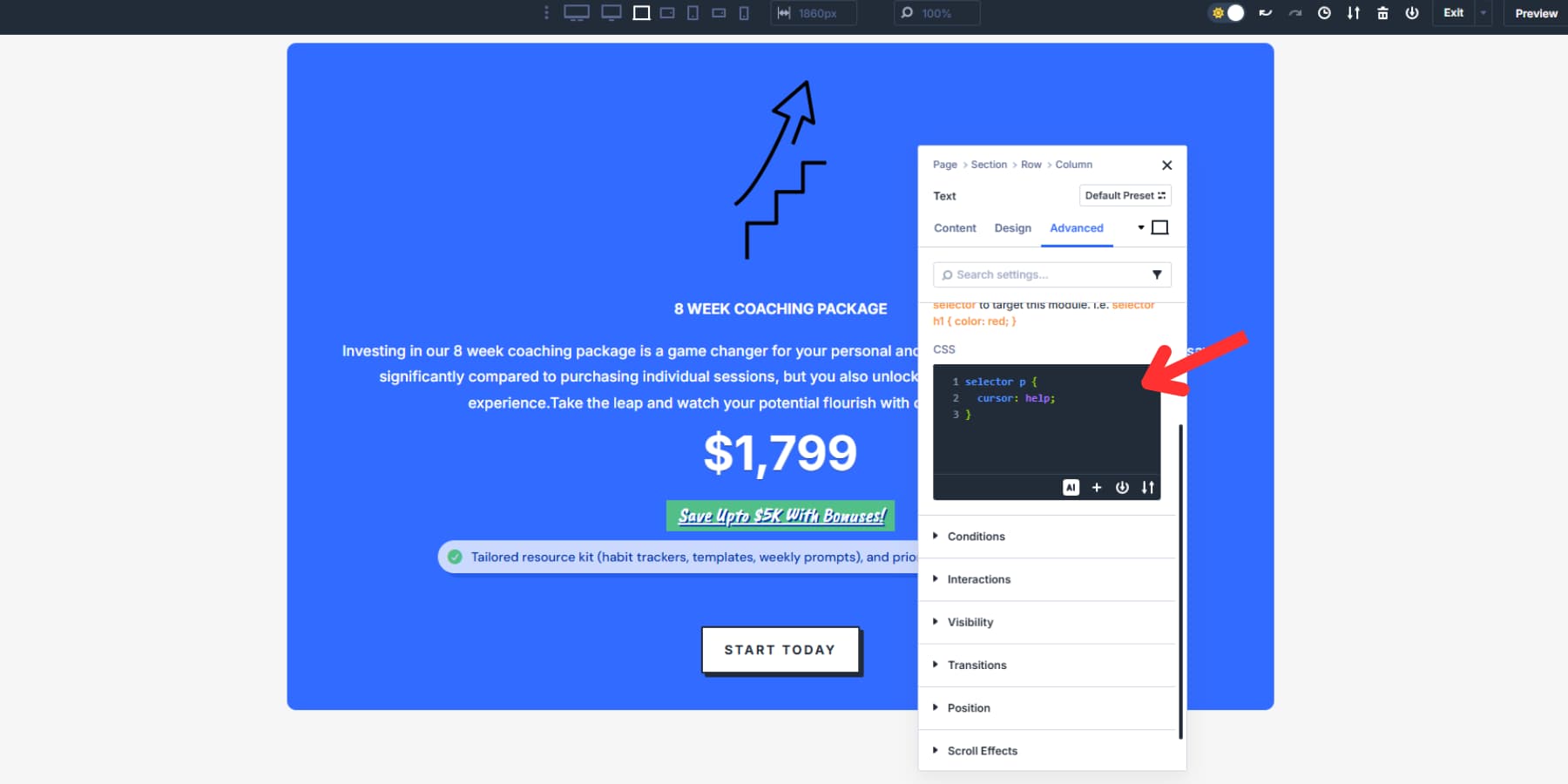

You might also upload customized CSS to the father or mother module in order that when hovered over, it presentations the vintage “?” cursor, indicating that additional info is to be had.
Cross to the module’s complicated settings and put the next CSS:
selector p {
cursor: lend a hand;
}
You could want to adapt the code to check your module. As an example, in case your tooltip father or mother is a button, you could possibly exchange it p with button as an alternative. This isn’t a required step, however this can be a same old setup for tooltips.
2. Configuring Interactions And Triggers
Now, choose the module that can cause your tooltip and head to the Complex tab. Search for the Interactions dropdown close to the ground.

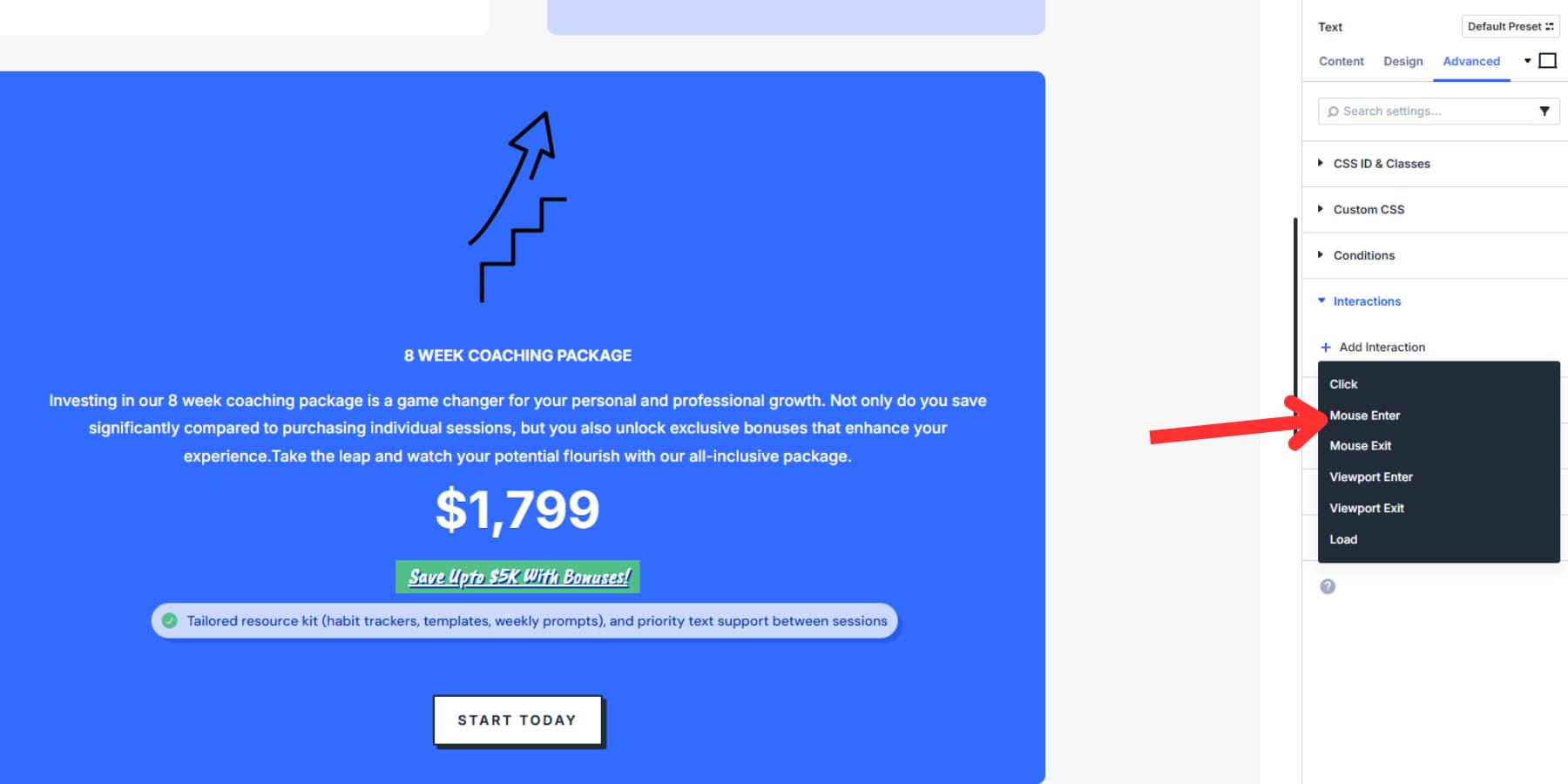

Hit “Upload Interplay” and also you’ll see six cause choices: Click on, Mouse Input, Mouse Go out, Viewport Input, Viewport Go out, and Load. Cross with “Mouse Input” for the standard hover tooltip.
The interplay editor opens. Within the Admin Label box, identify your interplay one thing transparent, like “Display Tooltip.” Your Cause Tournament must display Mouse Input. Since your tooltip begins hidden, select “Display Part” for the Impact Motion.
The Goal Module dropdown lists each component to your web page through identify. To find your tooltip right here. Excellent naming will pay off at this level. Upload a slight lengthen of 200 to 300 milliseconds so the tooltip doesn’t pop up all the way through fast mouse passes. Save the interplay while you’re achieved.

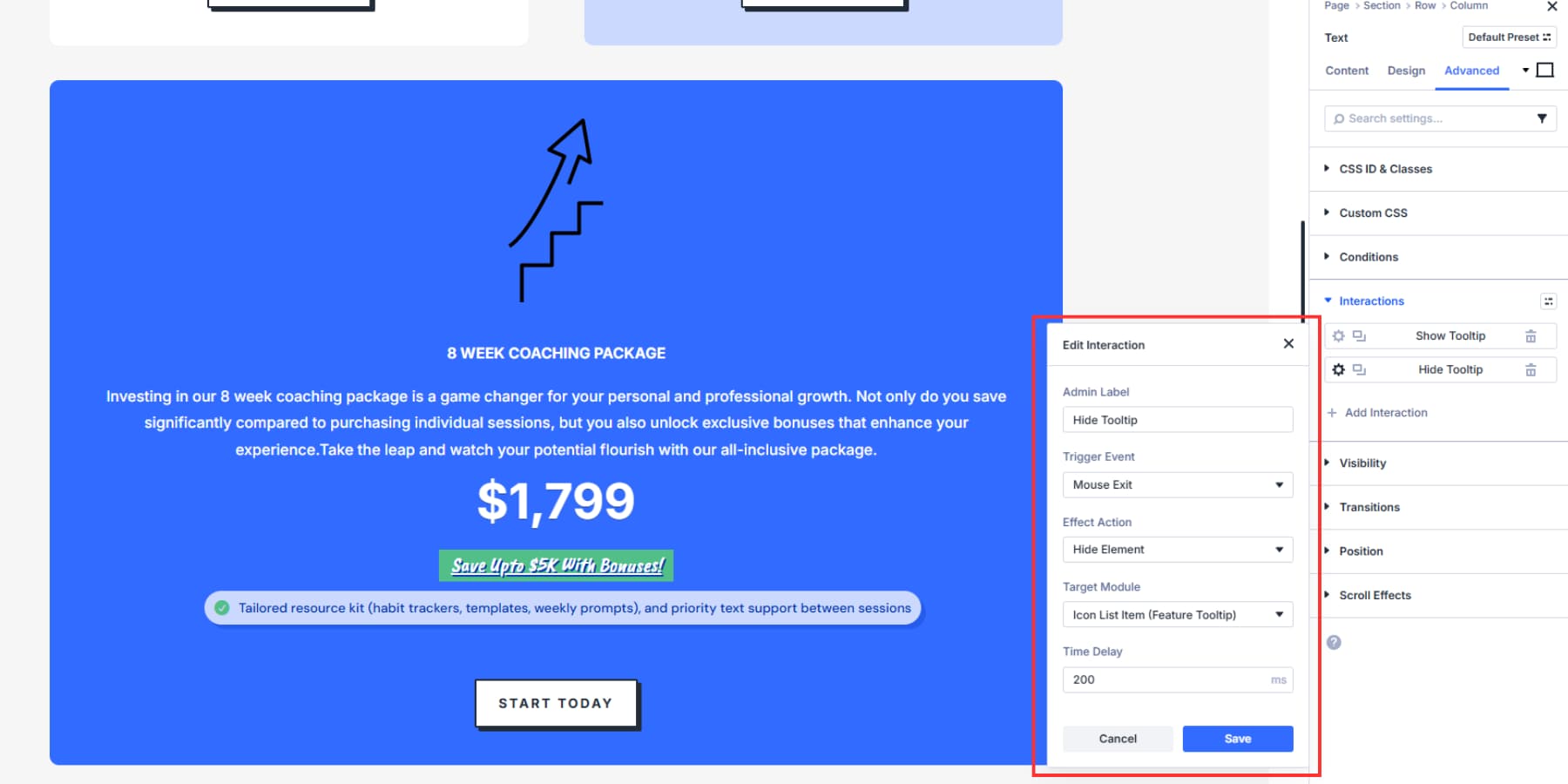

Create a 2d interplay to cover the tooltip. Click on “Upload Interplay” once more, select “Mouse Go out” as your cause, set “Disguise Part” because the impact, and goal the similar tooltip. This handles the disappearing act when other folks transfer away.
Upload a 200 to 300 millisecond lengthen right here, too. This prevents the tooltip from disappearing too briefly, making it glance jarring.
3. Positioning Your Tooltip
After development your tooltip and surroundings display and conceal movements, make a choice the place they seem. Within the tooltip module settings, move to Complex > Place and turn from Default to Absolute.

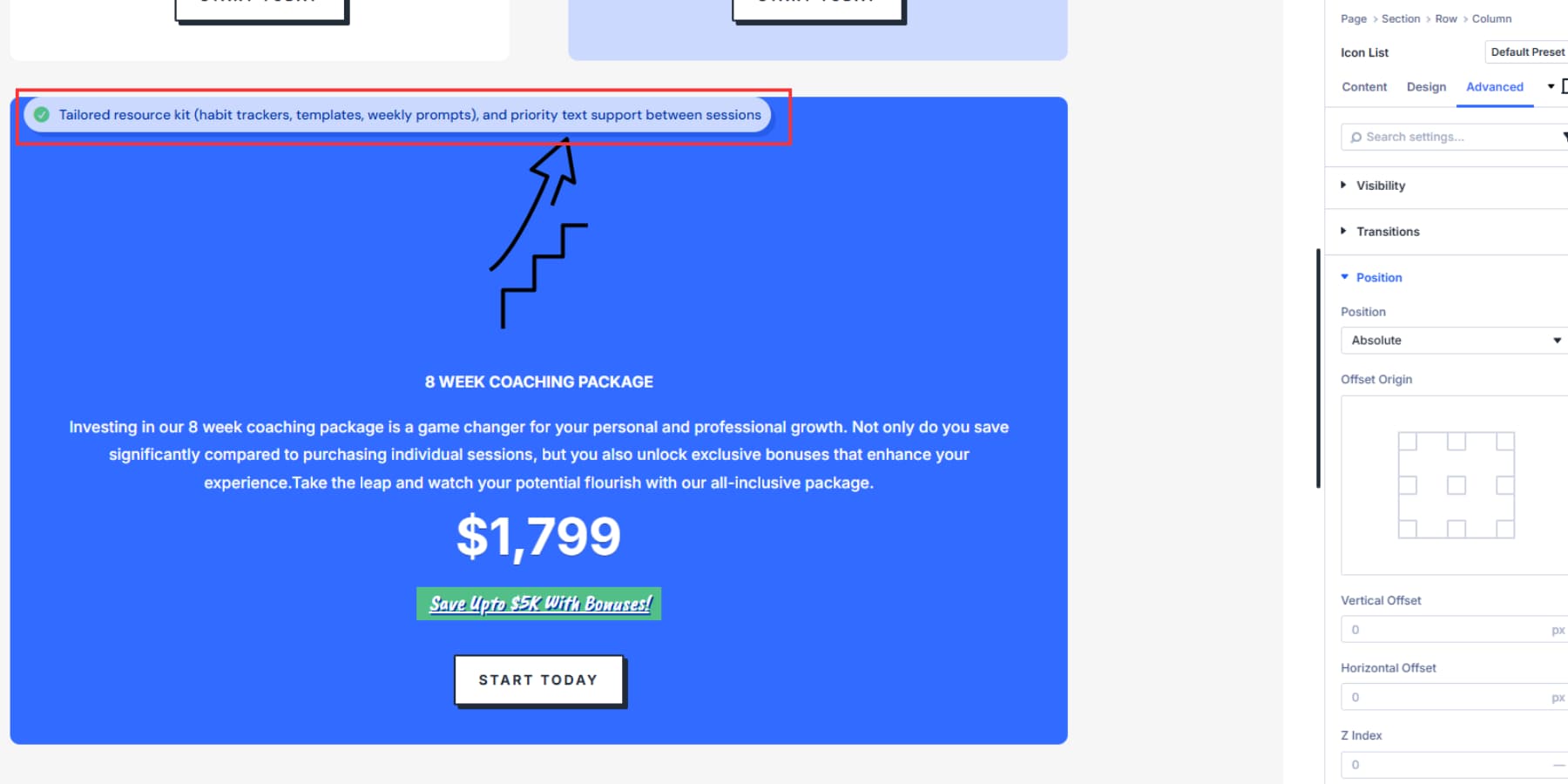

Absolute positioning puts the tooltip relative to its father or mother container, so the tooltip and cause keep connected and transfer in combination when customers scroll. So it’s herbal to peer the location of your tooltip module alternate greatly. We’ll repair this sooner or later.
Divi 5 supplies vertical and horizontal offset controls to fine-tune the tooltip’s placement. Those offsets set how a long way the tooltip sits from its reference level throughout the container.

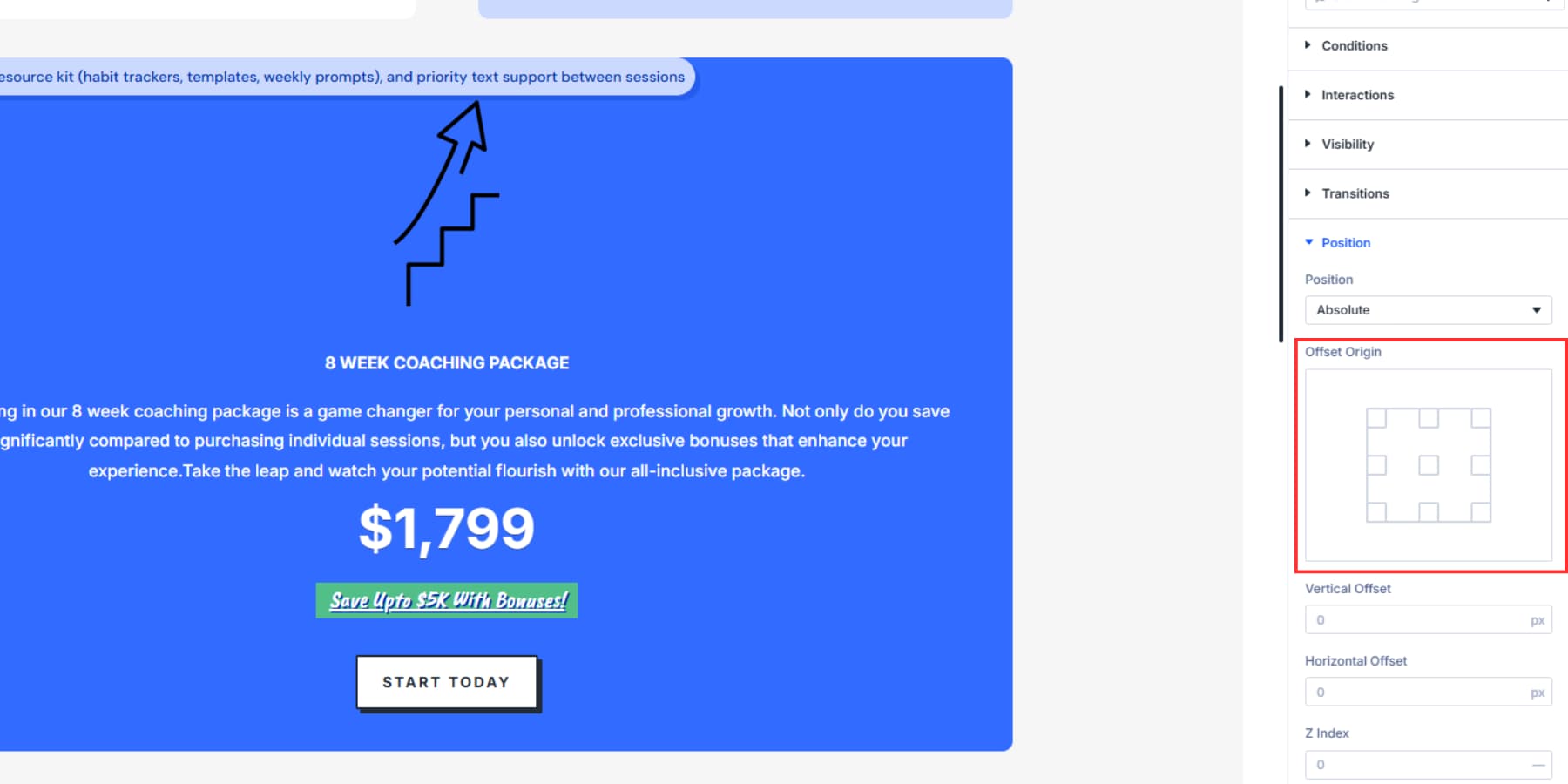

However, first, select the offset beginning, the nook or edge that acts because the anchor: peak, peak left, peak proper, backside, backside left, backside proper, or middle, middle left, middle proper.
If the beginning is peak left, offsets measure from the tooltip’s peak left nook. If you select backside proper, the similar offsets measure from the tooltip’s backside proper nook.
This adjustments how the offsets impact place. As an example, a peak left beginning with a 20px horizontal offset puts the tooltip’s left edge 20px from the container edge, and a peak proper beginning with a 20px horizontal offset puts the tooltip’s proper edge 20px from the container edge.
Running With Offset Controls

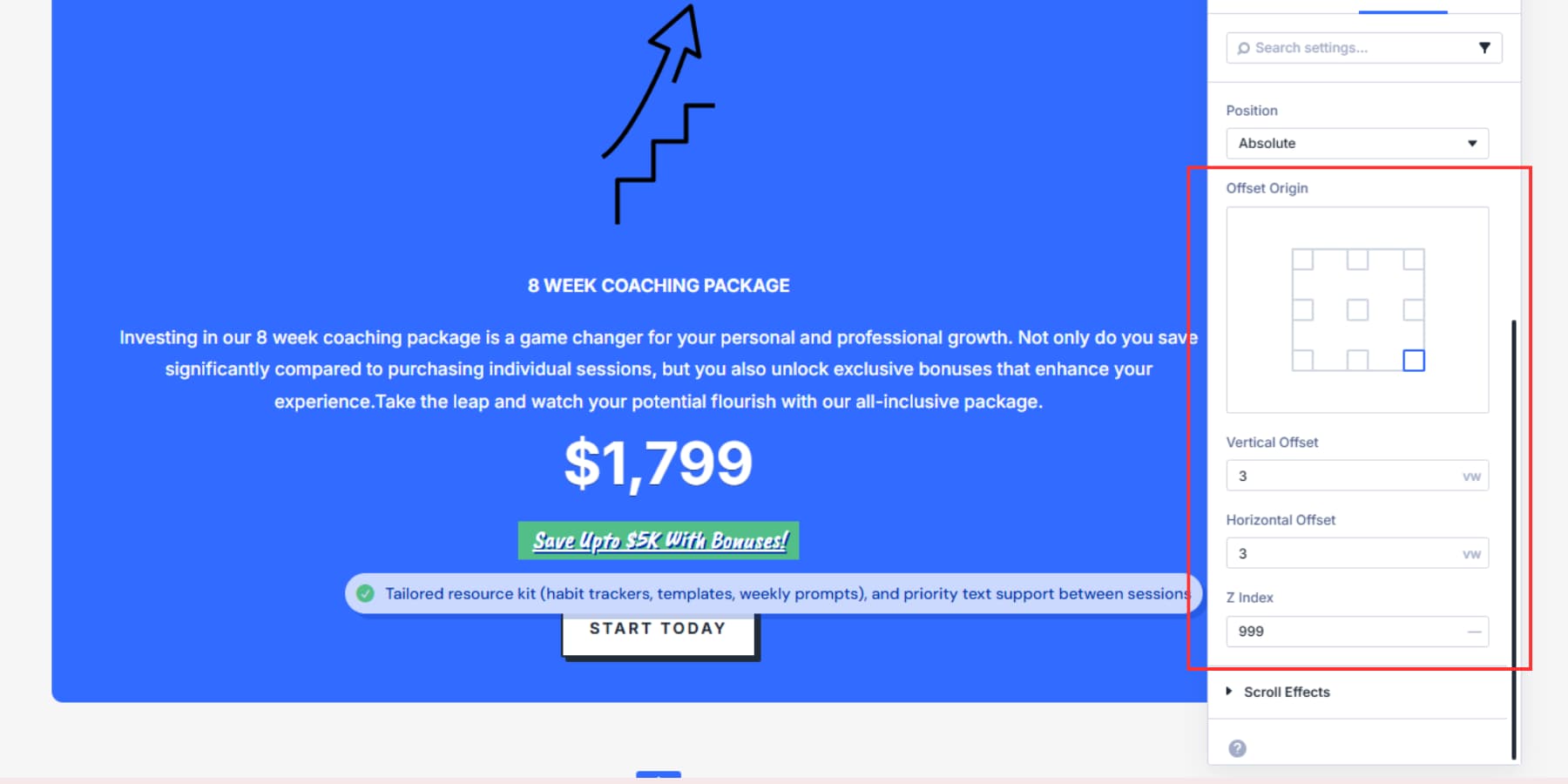

In case you select any alignment rather then middle, use the vertical and horizontal offset controls to place the tooltip. Those offsets set the tooltip’s distance from the selected beginning throughout the container. For responsive positioning, you’ll be able to use complicated gadgets equivalent to viewport gadgets or percentages as an alternative of pixels.
Viewport gadgets give constant spacing relative to display screen measurement. A horizontal offset of 3vw assists in keeping the tooltip 3% of the viewport width from its reference edge, scaling throughout gadgets. Additionally, make certain that you upload a right kind Z Index for your tooltip so it all the time seems atop of all components, under or above it.
Position the tooltip about 15–25 px from its cause to steer clear of crowding whilst conserving the relationship transparent.
Destructive offsets can turn aspects however upload psychological overhead. As an alternative, set the beginning the place you wish to have the tooltip (backside for above, proper for left) so you’ll be able to use easy sure offsets.

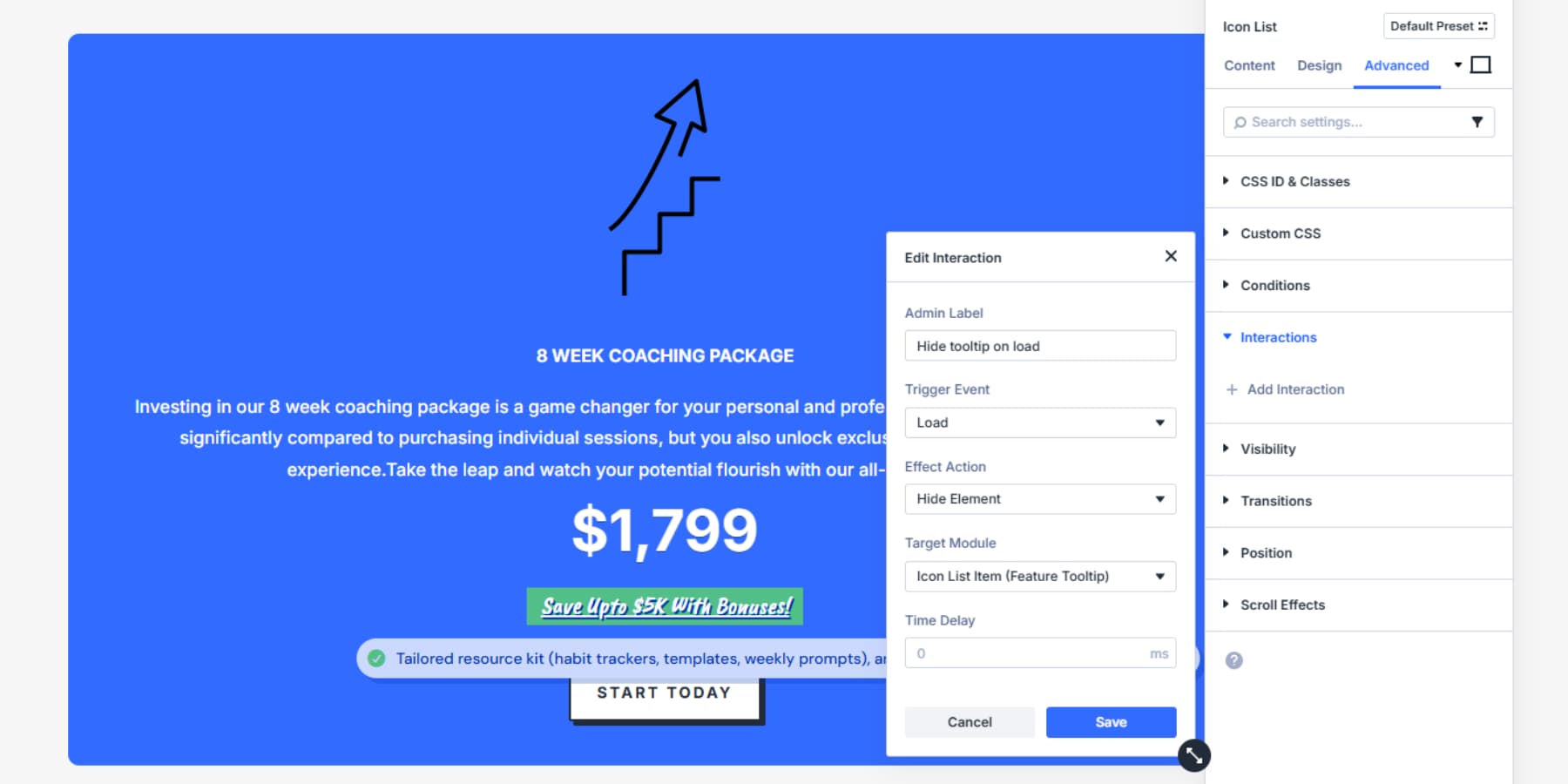

As soon as you make a decision at the precise place and behaviour, cover your tooltip module through going to the tooltip module’s settings panel > Complex > Interplay and choose “Load” because the cause, “Disguise Part” as Impact Motion, and the module itself because the Goal. This will likely make sure that the module stays hidden till the father or mother is hovered over.
That’s all, your tooltip is now able!
Obtain The Tooltip Format
If you wish to take a look at the tooltip, obtain the structure under! Import the document for your Divi Library, as soon as uploaded, you’ll have the ability to get right of entry to it inside of any construct you’re operating on.
@media handiest display screen and ( max-width: 767px ) {.et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_right .et_bloom_form_content:sooner than { border-top-color: #ffffff !vital; border-left-color: clear !vital; }.et_bloom .et_bloom_optin_1 .carrot_edge.et_bloom_form_left .et_bloom_form_content:after { border-bottom-color: #ffffff !vital; border-left-color: clear !vital; }
}.et_bloom .et_bloom_optin_1 .et_bloom_form_content button { background-color: #f92c8b !vital; } .et_bloom .et_bloom_optin_1 .et_bloom_form_content .et_bloom_fields i { shade: #f92c8b !vital; } .et_bloom .et_bloom_optin_1 .et_bloom_form_content .et_bloom_custom_field_radio i:sooner than { background: #f92c8b !vital; } .et_bloom .et_bloom_optin_1 .et_bloom_border_solid { border-color: #f7f9fb !vital } .et_bloom .et_bloom_optin_1 .et_bloom_form_content button { background-color: #f92c8b !vital; } .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2, .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2 span, .et_bloom .et_bloom_optin_1 .et_bloom_form_container h2 sturdy { font-family: “Open Sans”, Helvetica, Arial, Lucida, sans-serif; }.et_bloom .et_bloom_optin_1 .et_bloom_form_container p, .et_bloom .et_bloom_optin_1 .et_bloom_form_container p span, .et_bloom .et_bloom_optin_1 .et_bloom_form_container p sturdy, .et_bloom .et_bloom_optin_1 .et_bloom_form_container shape enter, .et_bloom .et_bloom_optin_1 .et_bloom_form_container shape button span { font-family: “Open Sans”, Helvetica, Arial, Lucida, sans-serif; } p.et_bloom_popup_input { padding-bottom: 0 !vital;}
Obtain For Loose
Sign up for the Divi E-newsletter and we can e-mail you a duplicate of without equal Divi Touchdown Web page Format Pack, plus lots of alternative superb and unfastened Divi sources, pointers and methods. Observe alongside and you’re going to be a Divi grasp very quickly. If you’re already subscribed merely kind on your e-mail cope with under and click on obtain to get right of entry to the structure pack.
You could have effectively subscribed. Please take a look at your e-mail cope with to verify your subscription and get get right of entry to to unfastened weekly Divi structure packs!
Take a look at Interactions In Divi 5 Nowadays
Tooltips stay pages blank whilst giving readers the additional element they want. With Interactions in Divi 5, you’ll be able to display and conceal tooltip content material on hover or faucet, upload a brief lengthen to forestall flicker, and position every tooltip exactly with Absolute, Offset Beginning, and Z-Index. The result’s constant throughout Divi 5’s seven responsive breakpoints.
Need to move deeper at the function itself? Learn the Interactions unlock put up for an outline of triggers, results, and goals.
