Section 3: Growing A Divi 5 International Design Gadget With Design Variables

In Section 2, we walked in the course of the primary portions of the Divi 5 interface. You presently know the place the primary equipment are living and the way the builder is arranged. In Section 3, we’ll focal point on a small however necessary a part of that interface: Design Variables.

Design Variables are named, reusable values that may be referenced via modules, presets, templates, and different portions of your Divi 5 design device. As a substitute of storing one-off values inside of particular person modules, you outline necessary values as soon as and reuse them around the website. In Divi 5, that incorporates colours, fonts, numbers, photographs, textual content strings, and hyperlinks.

This issues as a result of each and every Preset we create in Section 4, each and every web page segment we construct in Section 5, and each and every template we assemble in Section 8 will reference those variables. With out them, the presets would depend on hardcoded values. Because of this, the design device could be tougher to replace, reuse, and scale.

By means of the tip of this put up, our Coworking House site could have a whole set of Design Variables for typography, colours, spacing, borders, format dimensions, button styling, shape fields, and reusable content material. Those are the uncooked substances that energy the entirety that comes subsequent.

Why Design Variables Come First

A Design Variable is a named worth that may be referenced all the way through your Divi 5 website. For instance, as a substitute of typing #2176ff into each and every module that makes use of your logo blue, you create a colour variable known as Number one Colour with the worth #2176ff. Then, you reference Number one Colour anywhere that blue seems. The hex code lives in a single position, and each and every reference issues again to it.

Divi 5 helps six sensible variable varieties: colours, fonts, numbers, photographs, textual content, and hyperlinks. Due to this fact, your variable device can duvet greater than styling values. It could possibly additionally retailer emblems, industry main points, CTA textual content, and exterior URLs.

We create variables first as a result of the remainder of the design device relies on them. In Section 4, we’ll construct Possibility Workforce Presets and Part Presets that reference those variables. If the variables don’t exist but, the ones presets can’t bind to them. Bring to mind variables because the atoms, presets because the molecules, and pages because the organisms. The order issues.

Opening the Design Variable Supervisor

To get right of entry to the Design Variable Supervisor, open any web page or template within the Visible Builder. Then, click on the Design Variable icon within the Builder Bar at the left aspect of the display. This opens the Design Variable Supervisor, the place you’ll create, arrange, and organize sitewide variables.

On the best of the chief, use the dropdown to filter out variables via kind: Colours, Fonts, Numbers, Pictures, Textual content, and Hyperlinks. To create a brand new variable, click on the + button in the best kind segment. Subsequent, give the variable a descriptive identify, set its worth, and put it aside.

The mechanics are easy. Alternatively, the strategic choices topic: what you identify every variable, which worth it retail outlets, and what number of variables you create. The remainder of this newsletter will provide you with a sensible set to construct from.

A Easy Naming Rule Ahead of You Get started

Ahead of developing variables, use names that describe every variable’s position. For vast logo values, names like Number one Colour, Secondary Colour, and Frame Textual content Colour paintings properly as a result of they are able to be utilized in many contexts.

For values with a selected activity, use useful names comparable to Border – Fields Darkish, Background Overlay – Darkish, or Rounded Corners – Buttons. This assists in keeping the device more uncomplicated to scan later, particularly whilst you get started development presets from those variables in Section 4.

Colour Variables

Colours outline logo id, determine visible hierarchy, and create distinction between sections. Our Coworking House website makes use of a slim palette constructed from a small choice of base colours. Then, we prolong that palette with Divi 5’s Relative Colour device to create clear variants, overlay tones, and contextual sun shades.

Base Colours

Get started via developing the foundational colour variables. Number one, Secondary, Heading Textual content, Frame Textual content, and Hyperlink colours are already generated for you. On this step, replace them to compare the Coworking House design.

Number one Colour: #2176ff
Secondary Colour: #ff5700
Heading Textual content Colour: #000000
Frame Textual content Colour: rgba(0,0,0,0.7)
Hyperlink Colour: Reference Number one Colour

From there, upload a couple of software colours. Black and White is probably not used at once on modules very incessantly. As a substitute, they act as base values for the relative colours under, the place we modify opacity to create overlays, borders, shadows, and clear tints.

Black: #000000
White: #ffffff
Background – Gentle Grey: #f5f5f5

Relative Textual content Colours

With the bottom colours in position, construct derived textual content colours the usage of Divi 5’s variable referencing and relative colour capability. Those values create dark-on-light and light-on-dark opposite numbers. Because of this, a piece can transfer colour schemes via opting for a special preset, which we’ll duvet in Section 4.

Heading Textual content – Gentle: Reference the White variable at once.
Frame Textual content – Gentle: Create a relative colour from White at 90% opacity.
Textual content – Darkish Clear: Create a relative colour from Frame Textual content Colour at 40% opacity.
Textual content – Gentle Clear: Create a relative colour from Frame Textual content – Gentle at 60% opacity.

Relative Background, Overlay, and Software Colours

Those closing colour variables spherical out the palette. Some are role-based, comparable to Border – Darkish and Drop Shadow, as a result of they’re meant for particular design jobs. Others, comparable to Black – Clear and White – Clear, are extra versatile software values.

In observe, each naming types are helpful. Use descriptive colour names when a price can seem in lots of contexts. Use useful names when a price has a selected goal.

Background Overlay – Darkish: Create a relative colour from Black at 86% opacity.
Background Overlay – Gentle: Create a relative colour from White at 86% opacity.
Black – Clear: Create a relative colour from Black at 10% opacity.
White – Clear: Create a relative colour from White at 20% opacity.
Border – Darkish: Create a relative colour from Black at 12% opacity.
Border – Gentle: Create a relative colour from White at 30% opacity.
Border – Fields Darkish: Create a relative colour from Black at 30% opacity.
Border – Fields Gentle: Create a relative colour from White at 50% opacity.
Drop Shadow: Create a relative colour from Black at 15% opacity.

Font Variables

For this website, create two font variables: Heading and Frame. Divi makes it simple to choose Google Fonts, and Divi additionally helps uploaded customized fonts for initiatives that want them. For our Coworking House website, each variables use Inter.

Heading: Inter
Frame: Inter

The use of a unmarried typeface for each headings and frame textual content isn’t at all times required. Alternatively, it will probably make your first design device more uncomplicated to regulate. On this construct, the visible distinction between headings and frame textual content comes from dimension, weight, and line peak as a substitute of from separate font households.

A unmarried font circle of relatives too can cut back font-loading complexity. Nonetheless, the usage of two well-chosen font households won’t smash your website’s efficiency by itself. Use the sort device your design wishes, and stay the font variety intentional.

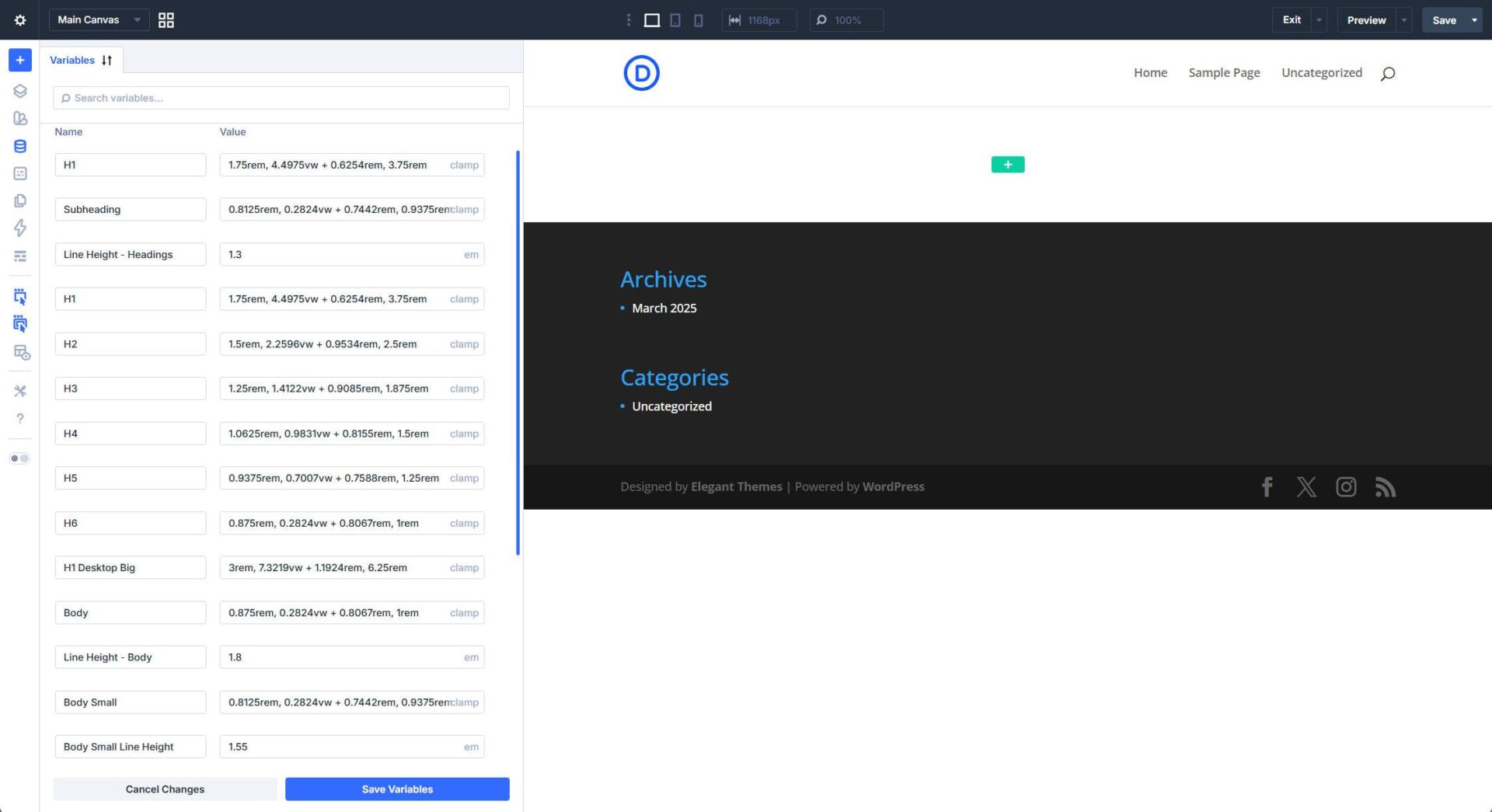

Quantity Variables: Typography

Quantity variables deal with values measured in pixels, rems, ems, or CSS purposes. We’ll create them in logical teams, beginning with typography.

Heading Sizes

Each and every heading degree will get a fluid dimension the usage of a CSS clamp() serve as. Those values outline a minimal dimension, a most popular scaling fee, and a most dimension. Due to this fact, headings can scale easily between cell and desktop with out requiring separate values for each and every breakpoint.

In combination, those variables create a proportional kind scale that is still visually balanced throughout display sizes. So as to add them to the Design Variable Supervisor, create a brand new Quantity Variable, replica the overall clamp() worth, and paste it in.

H1: clamp(1.75rem, 4.4975vw + 0.6254rem, 3.75rem)
H2: clamp(1.5rem, 2.2596vw + 0.9534rem, 2.5rem)
H3: clamp(1.25rem, 1.4122vw + 0.9085rem, 1.875rem)
H4: clamp(1.0625rem, 0.9831vw + 0.8155rem, 1.5rem)
H5: clamp(0.9375rem, 0.7007vw + 0.7588rem, 1.25rem)
H6: clamp(0.875rem, 0.2824vw + 0.8067rem, 1rem)
H1 Large: clamp(3rem, 7.3219vw + 1.1924rem, 6.25rem)
Eyebrow Subheading: clamp(0.8125rem, 0.2824vw + 0.7442rem, 0.9375rem)

Frame Textual content Sizes

Frame is the usual paragraph dimension. Frame Small covers secondary textual content, comparable to footers and captions. Frame XS is a set dimension for tags and wonderful print. In the meantime, Fields Textual content suits Frame Small nowadays however remains separate so shape box textual content will also be adjusted independently later.

Frame: clamp(0.875rem, 0.2824vw + 0.8067rem, 1rem)
Frame Small: clamp(0.8125rem, 0.2824vw + 0.7442rem, 0.9375rem)
Frame XS: 12px
Fields Textual content: clamp(0.8125rem, 0.2824vw + 0.7442rem, 0.9375rem)

Line Heights

Headings use tight main as a result of massive textual content already supplies visible construction. Frame textual content makes use of extra beneficiant main for relaxed studying. Small textual content sits in between.

Line Peak – Headings: 1.3em
Line Peak – Frame: 1.8em
Frame Small Line Peak: 1.55em

Spacing

Spacing variables create a constant rhythm between components. Slightly than eyeballing padding and margins on each and every module, reference a spacing variable that enforces the similar distance anywhere it’s used.

The mounted values duvet tight part gaps, comparable to Spacing – XSmall, via beneficiant segment padding, comparable to Spacing – Massive. As well as, Spacing – Fluid scales with the viewport to keep away from spacing that feels too tight on desktop or too unfastened on cell. Grid Hole – Fluid is identical, however it’s capped at 60px for CSS Grid layouts.

Spacing – XSmall: 10px
Spacing – Small: 20px
Spacing – Medium: 30px
Spacing – Common: 60px
Spacing – Massive: 100px
Spacing – Fluid: clamp(24px, 6vw, 90px)
Grid Hole – Fluid: min(4vw, 60px)

Borders and Corners

Structural borders and box borders proportion the similar worth, however they’re separated so they are able to evolve independently. Button borders are set to 0px as a result of this design makes use of stuffed backgrounds quite than outlines.

The similar common sense applies to nook radii. The 3 8px values fit now, however they’re separated as a result of photographs, packing containers, and shape fields are other design issues. For instance, you may later need rounder photographs however sharper playing cards. If so, you’ll alternate one variable with out affecting the others. In any case, Rounded Corners – Buttons makes use of 500px to create a tablet form.

Border Width: 1px
Border Width – Fields: 1px
Border Width – Buttons: 0px
Rounded Corners – Common: 8px
Rounded Corners – Pictures: 8px
Rounded Corners – Fields: 8px
Rounded Nook – Small: 4px
Rounded Nook – Massive: 16px
Rounded Corners – Buttons: 500px

Buttons

The two:1 horizontal-to-vertical padding ratio creates a large, click-friendly button form. Those 3 variables, mixed with Rounded Corners – Buttons and Border Width – Buttons, outline the bodily dimensions of each and every button at the website.

Button Font Dimension: 14px
Button Vertical Padding: 16px
Button Horizontal Padding: 32px

Format Dimensions

Format variables constrain content material to readable line lengths. Row Max Width is the default for same old content material rows. The narrower choices are for weblog posts, paperwork, and compact focused blocks, the place shorter strains can support clarity.

Row Max Width: 1080px
Max Width – 900: 900px
Max Width – 700: 700px
Max Width – 510: 510px

Symbol Variables

Symbol variables retailer visible property which are reused around the website.

Brand Darkish: The darkish model of the emblem for mild backgrounds.
Brand Gentle: The sunshine or white model of the emblem for darkish backgrounds.

Each header, footer, and template that presentations the emblem can reference this sort of variables. Then, should you support or exchange an emblem later, you most effective want to replace the Symbol Variable. The alternate will follow anywhere that variable is used. When you do not need an emblem but, use Logoipsum to create a brief placeholder.

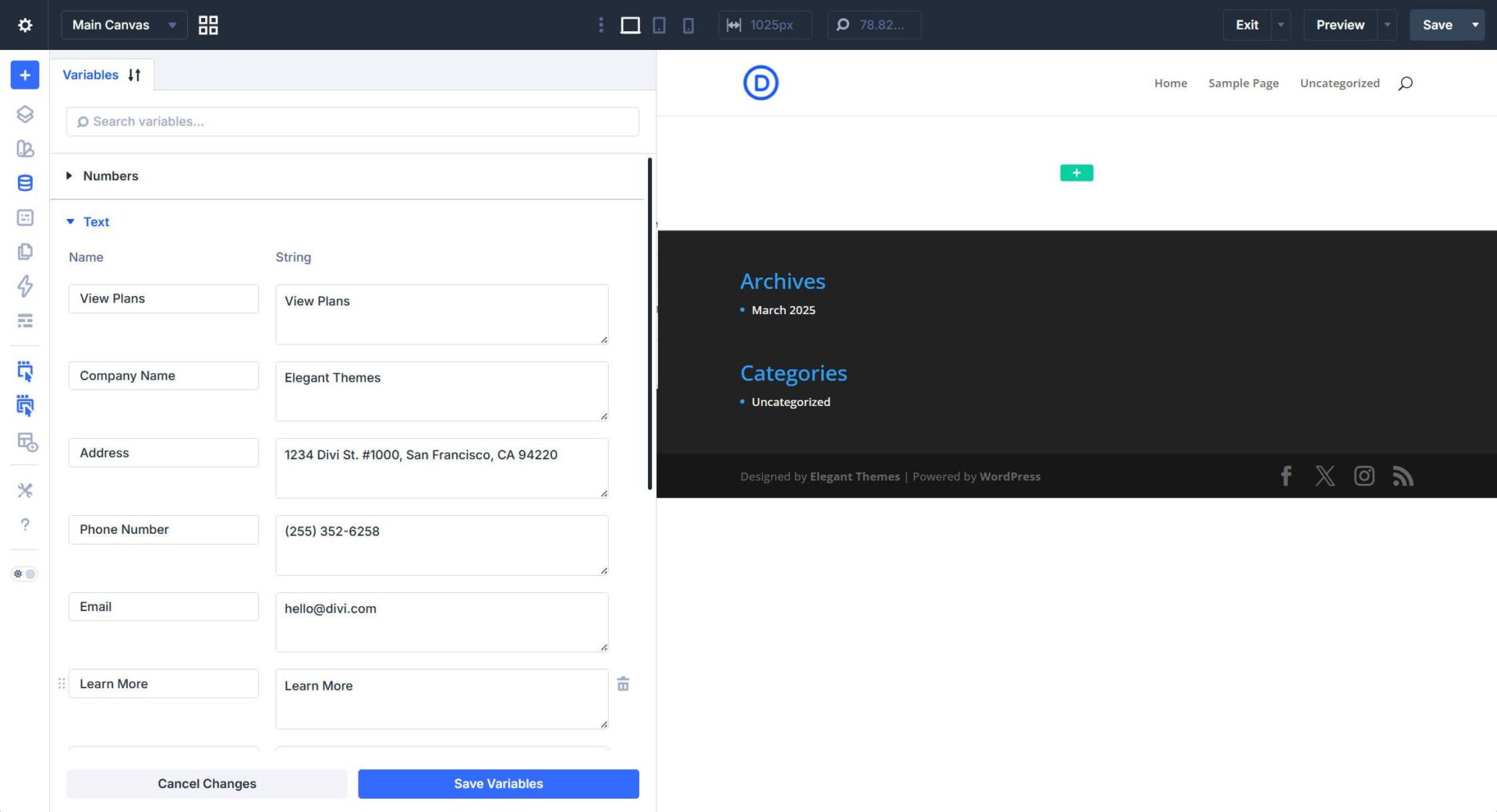

Textual content Variables

Textual content variables retailer phrases and words that repeat throughout pages and templates. If you are expecting to kind the similar textual content greater than as soon as, it’s incessantly value saving it as a Textual content Design Variable. Industry main points are a robust use case as a result of they have a tendency to look in headers, footers, touch sections, and templates.

Corporate Identify: Chic Subject matters
Deal with: 1234 Divi St. #1000, San Francisco, CA 94220
Telephone Quantity: (255) 352-6258
Electronic mail: [email protected]
Opening Hours: Mon-Fri: 10am–5pm / Sat-Solar: Closed

CTA anchor textual content could also be value making plans upfront. As a result of buttons seem all the way through the website, reusable CTA variables assist stay wording constant and cut back small choices right through the construct.

Ebook Excursion: Ebook Excursion
View Plans: View Plans
Be informed Extra: Be informed Extra
Learn Extra: Learn Extra

Hyperlink Variables

Hyperlink variables retailer URLs that get referenced throughout a couple of modules. For hyperlinks constructed inside of your WordPress set up, dynamic information would possibly already be the easier selection. Alternatively, for exterior locations like social profiles, scheduling equipment, or third-party assets, Hyperlink Variables are handy.

Chic Subject matters: https://www.elegantthemes.com/
YouTube: https://www.youtube.com/

Those variables are particularly helpful when an exterior URL adjustments. For instance, after your YouTube channel qualifies for a customized deal with or vainness URL, you’ll replace the YouTube Hyperlink Variable as soon as. Then, each and every module that references it’ll level to the brand new vacation spot.

Reviewing the Whole Gadget

With all variables created, the design device comprises 21 colour variables: 8 base colours and 13 colours constructed with the relative colour device. It additionally contains 2 font variables, 38 quantity variables, 2 symbol variables for brand variants, 9 textual content variables for industry knowledge and CTAs, and a pair of hyperlink variables for reusable URLs.

That provides us 74 energetic design variables earlier than any web page modules were added. Extra importantly, the restrictions are already in position. Each colour has a reputation, each and every spacing worth has a goal, and each and every heading degree has a fluid dimension that adapts throughout display sizes.

The payoff is consistency and changeability. While you follow Spacing – Small to a card’s padding and an inventory’s hole, the ones distances fit since the variable enforces them. Likewise, if a shopper makes a decision the logo blue must shift, you’ll alternate Number one Colour as soon as and let that replace drift via each and every preset that references it.

What’s Coming Subsequent

The variables are in position, however they don’t do a lot on their very own but. In Section 4: Mastering Divi 5 Presets For Quicker, Extra Constant Internet Design, we’ll use those variables to construct a whole library of Possibility Workforce Presets and Part Presets.

You’ll see how a Number one Colour variable turns into a Crammed – Number one Colour button preset, how heading dimension variables get bundled into Heading 1 via Heading 6 presets, and the way a couple of spacing variables generate a whole circle of relatives of container padding presets. As soon as the ones presets are constructed, they are able to be reused throughout each and every module at the website.
